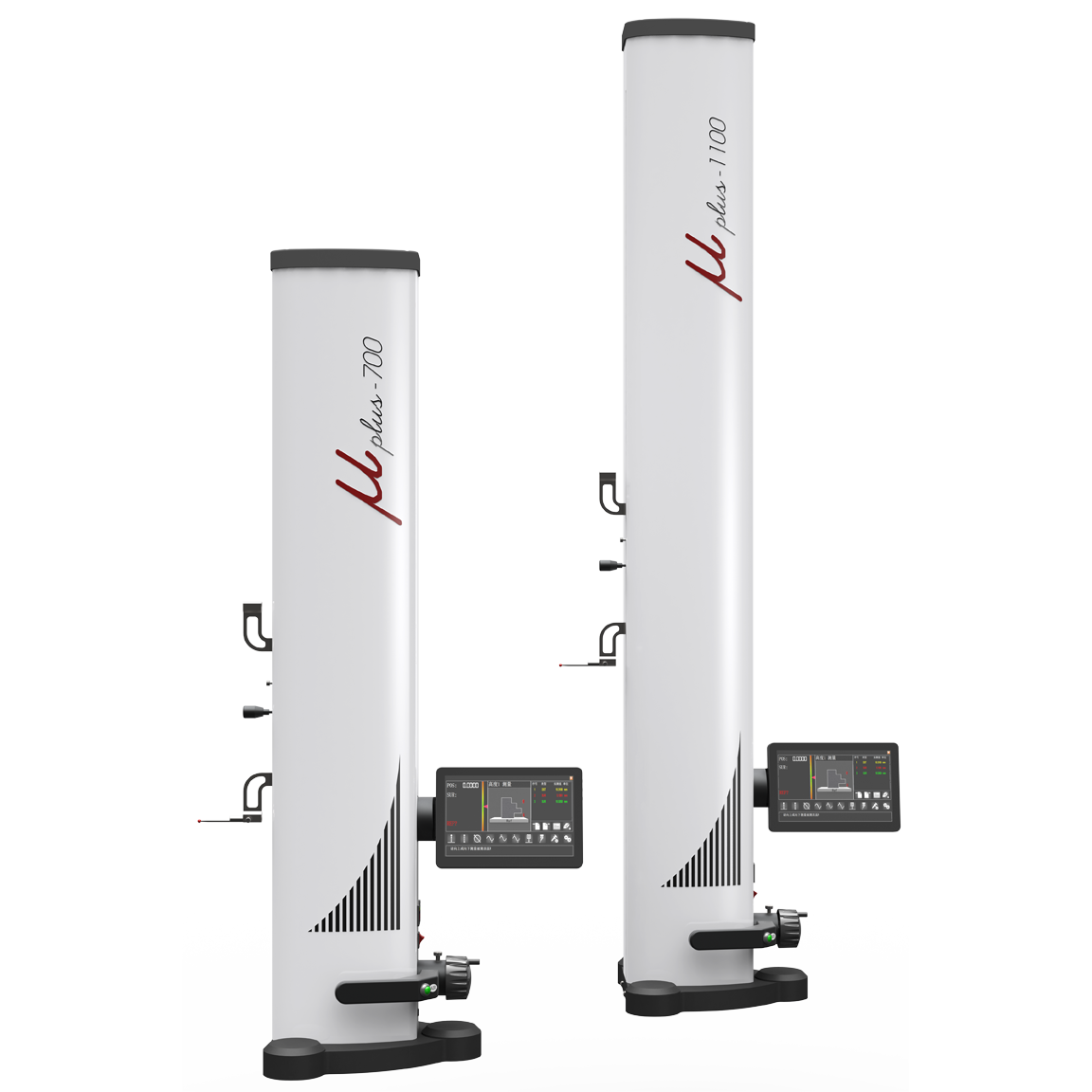

The Height Gauge Series adopts a column-type structure, featuring a high-quality gray cast iron base, high-precision guide rails, and an imported 0.1μm-resolution grating scale, ensuring stable accuracy and reliable performance. Designed for complex workshop environments, it integrates specialized technologies such as a temperature compensation system and dust-proof design to enhance instrument performance. Equipped with dedicated measurement software, it enables functions like height, diameter, maximum/minimum values, difference, angle, and verticality measurements. Widely used in aerospace, instrumentation, machinery processing, and other industries.
Built-in digital one-dimensional scanning probe for automatic recognition of curve "inflection points";
High-quality cast iron base with air-bearing and rigid connections for improved precision retention;
Auxiliary air-flotation system for easy instrument movement during large workpiece measurements;
Built-in lithium battery with up to 12 hours of battery life;
Integrated temperature compensation system for adaptability to harsh workshop conditions;
Industrial-grade tablet PC with 4GB RAM + 64GB storage capacity;
Windows-based professional measurement software supporting Excel report export, USB/Bluetooth data transfer;
Intuitive function keys and graphical display interface for user-friendly operation.
| u plus | 450 | 700 | 1100 |
| Measurement range mm | 460 | 710 | 1110 |
| repeatability μm |
Plane 0.5 Diameter 1 | ||
| resolution ratio mm |
0.0001 | ||
| Measuring force N | 0.9±0.2 | ||
| Drive mode | handwheel | ||
| weight kg | 22 | 25 | 29 |
Dimensions
| model | L | W | H |
| u plus-450 | 494 | 302 | 844 |
| u plus-700 | 494 | 302 | 1094 |
| u plus-1100 | 494 | 302 | 1494 |
-
