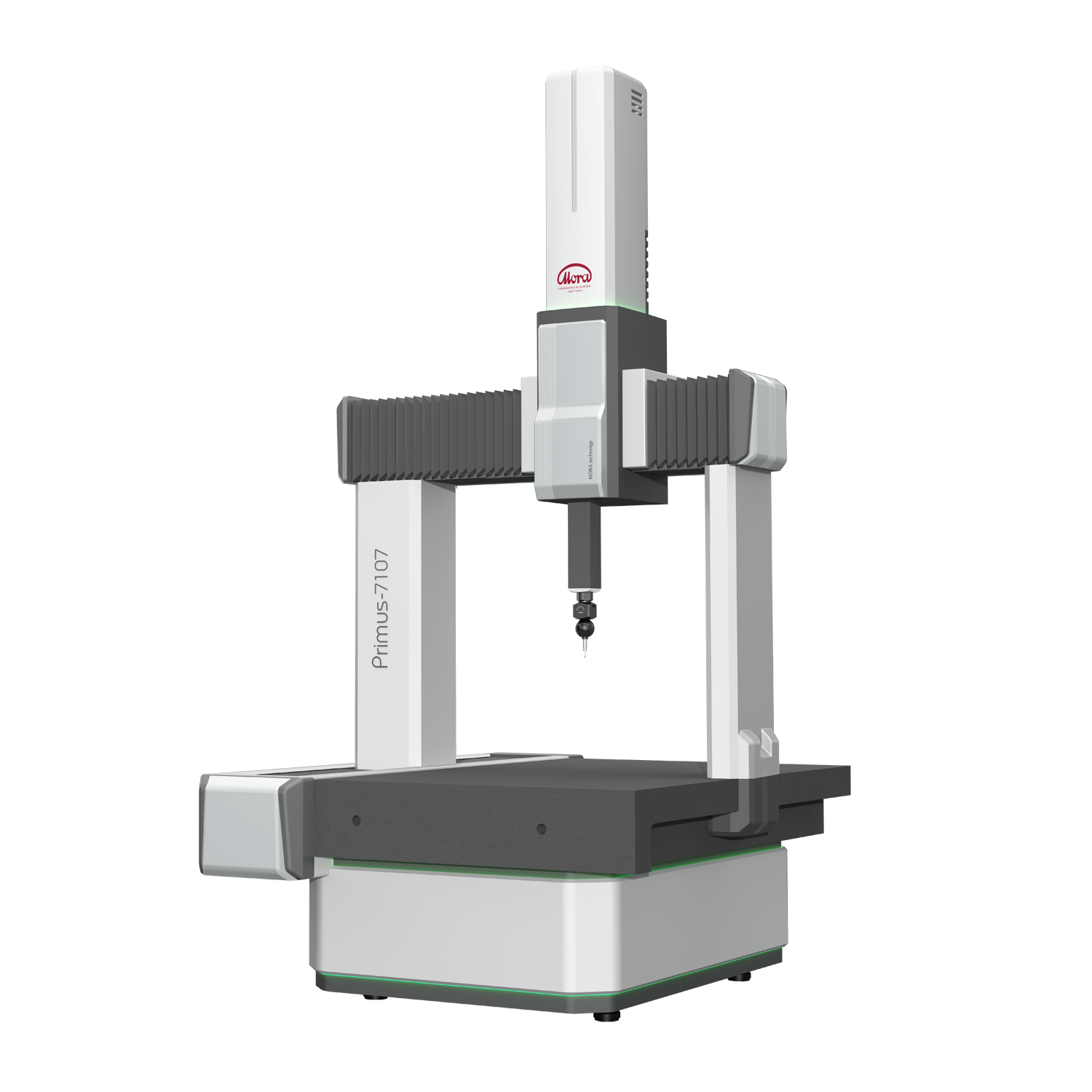

The Primus/Legend high-precision series of coordinate measuring machines (CMMs) represents over a century of technical expertise and meticulous manufacturing from the German Mora Metrology company, featuring multiple patented technologies.
Primus is the international model name for this series.
Legend is the model name for the Chinese market.

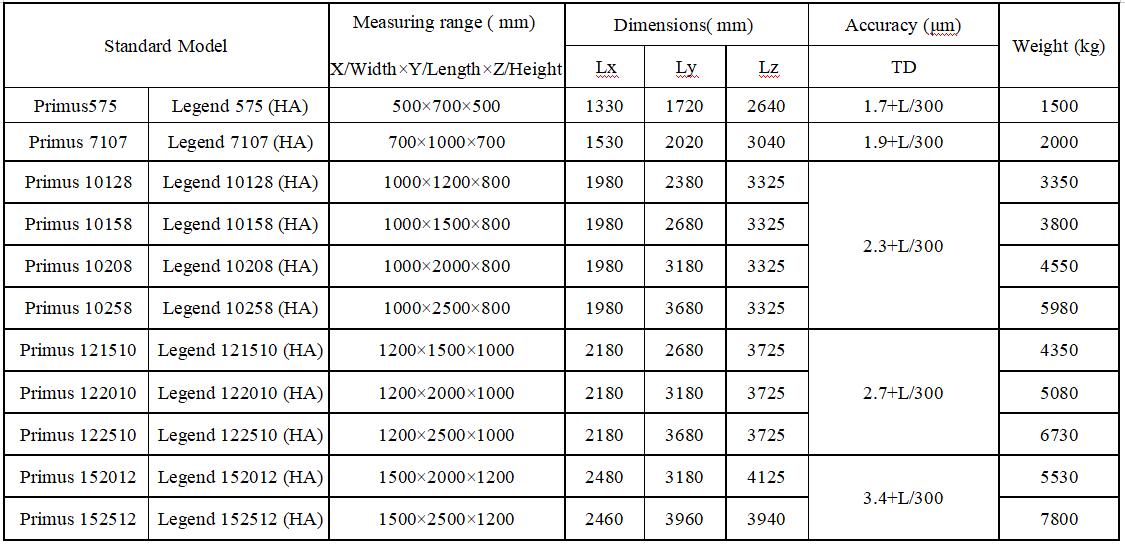

1 The accuracy given in the table is the accuracy when equipped with conventional trigger probes such as TD and TP20.
2 The measurement accuracy can be improved by choosing different probes. When equipped with scanning probes such as SP25 and SP80, the accuracy can be improved by about 0.5~1μm.
3 The CMM is equipped with a temperature compensation system as standard. According to the size of the machine and the reasonable layout of temperature sensors, it actively corrects and compensates for the accuracy loss caused by the change of the ambient temperature in real time, realizing the measurement application scenario of "warm in winter and cool in summer".
4 The maximum load-bearing capacity of the workbench can be increased by adding support points.
5 Temperature change no more than 1 °C/hour, 2 °C/24 hours, temperature gradient in space no more than 1 °C/m.
