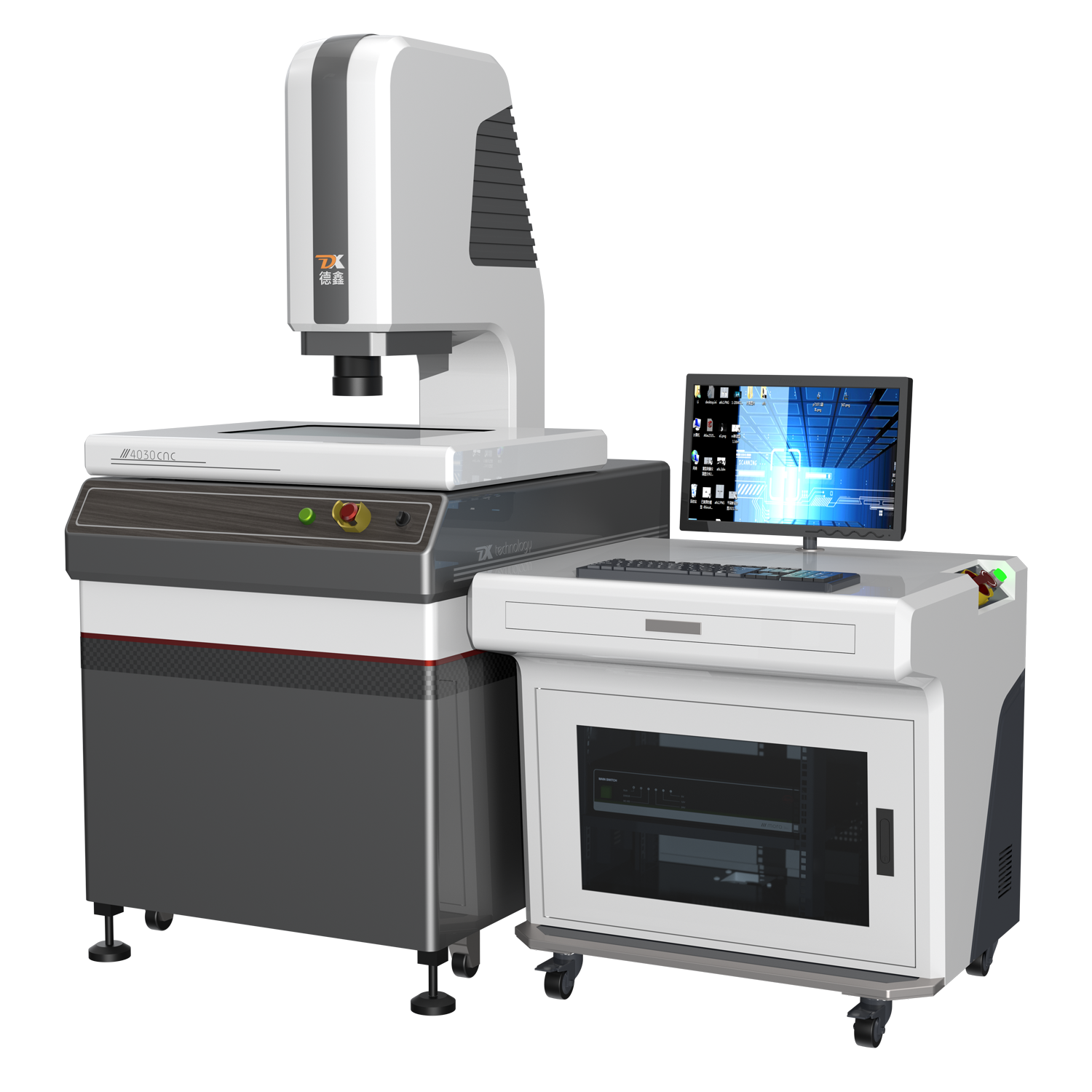

DHL Series Automatic Image Measuring Instruments
Product Overview
DHL Automatic / TL Manual Video Measuring Machines: Deliver exceptional value and comprehensive measurement capabilities. 3D probes can be added to any unit for simultaneous 2D and 3D dimensional measurement. Equipped with fully automatic CNC closed-loop control for all three axes.
Key Parameters and Technical Specifications
| model | DHL3020 | DHL4030 | DHL5040 | |
| Measuring stroke（mm） | 300*200*200 | 400*300*200 | 500*400*200 | |
| Dimensions（mm） | 1420*775*1660 | 1660*980*1660 | 1720*1210*1660 | |
| weight（kg） | 290 | 420 | 470 | |
| Load-bearing（kg） | 15 | |||
| Grating ruler | 0.5um Grating ruler | |||
| Indication error（um） | Optics | 2.5+L/150 | 3.0+L/150 | 3.5+L/150 |
| Trigger | 4.5+L/150 | |||
| Image Sensor | High-definition color industrial camera | |||
| Objective | 6.5:1 manual zoom lens (0.7X-4.5X) | |||
| Comprehensive magnification | 28X-170X | |||
| Lighting system | Rim Light | Programmable LED cold light source, 256 levels of brightness adjustable | ||
| Falling light | Programmable 4-ring 8-zone LED cold light source, 256 levels of brightness adjustable | |||
| Coaxial light | Programmable LED cold light source, 256 levels of brightness adjustable | |||
| Running speed（mm/s） | XY | 200 | ||
| Z | 100 | |||
| Work Environment | Temperature: 20+2℃, Humidity: 40%-70% | |||
| Working power supply | 220V 50Hz 1KVA | |||
| Air source requirements | none | |||
